Reservoirs, Boundaries, Water Quality, and Risk

These Phase 1 cases validate model components that are important for applications but are easier to test outside a full watershed run. The logic is the same as in the rest of the validation package: isolate the process, define the reference clearly, and separate what the case proves from what it does not prove.

Reservoir rating-curve depletion

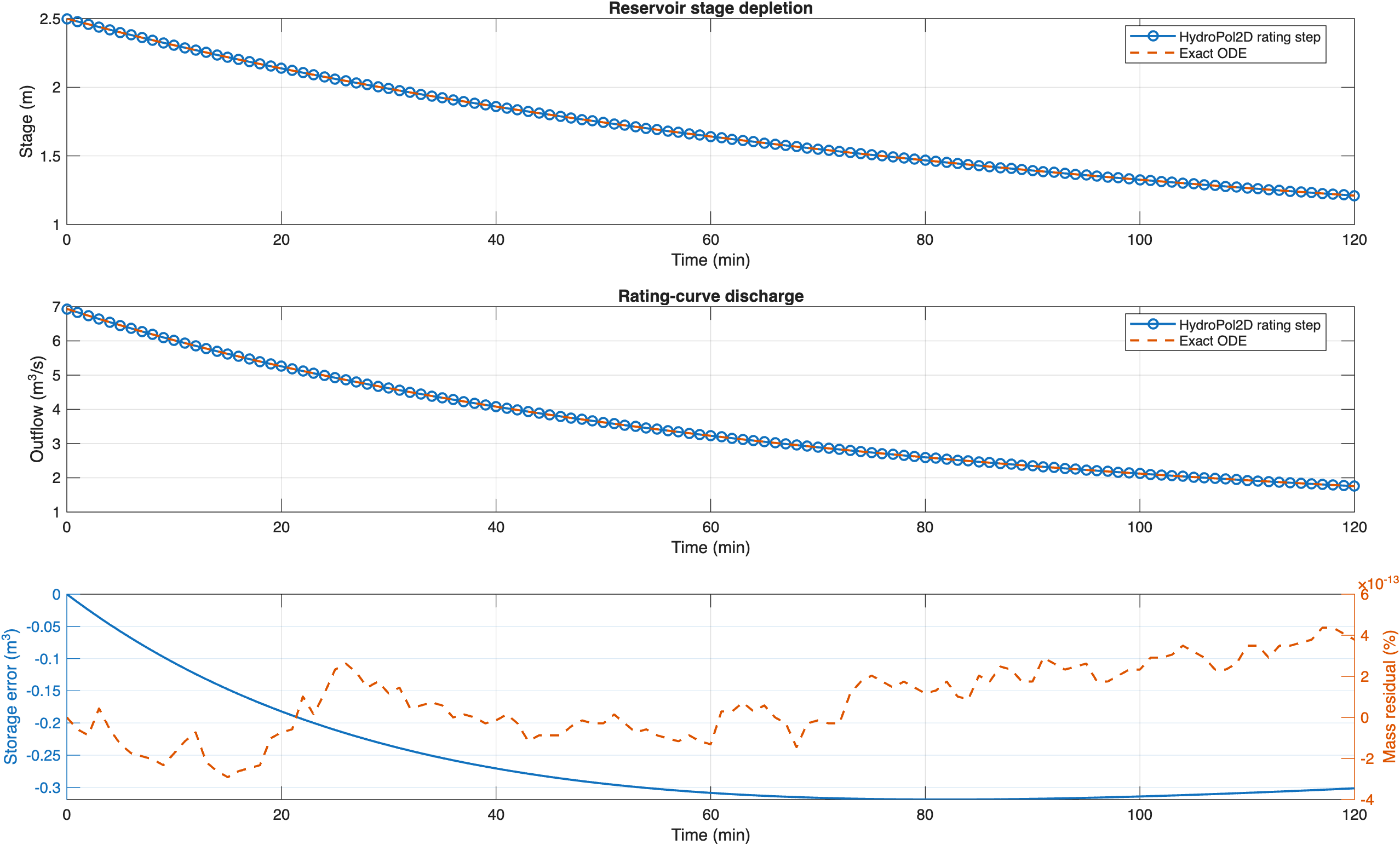

Case P1-RES-001 isolates the reservoir-control logic using a constant-area reservoir and a single outlet rating curve. With no external inflow, the exact reference is the depletion solution of the storage ODE.

Case	Storage RMSE (m³)	Outflow RMSE (m³/s)	Relative L2	Recovered k error (%)	Mass residual (%)
P1-RES-001	0.2730	4.96 × 10^-5	7.80 × 10^-6	0.0000	4.37 × 10^-13

The case passed all thresholds. The small storage difference is the expected explicit-integration truncation error relative to the continuous exact ODE. The water ledger itself closes to numerical precision.

Inflow hydrograph boundary condition

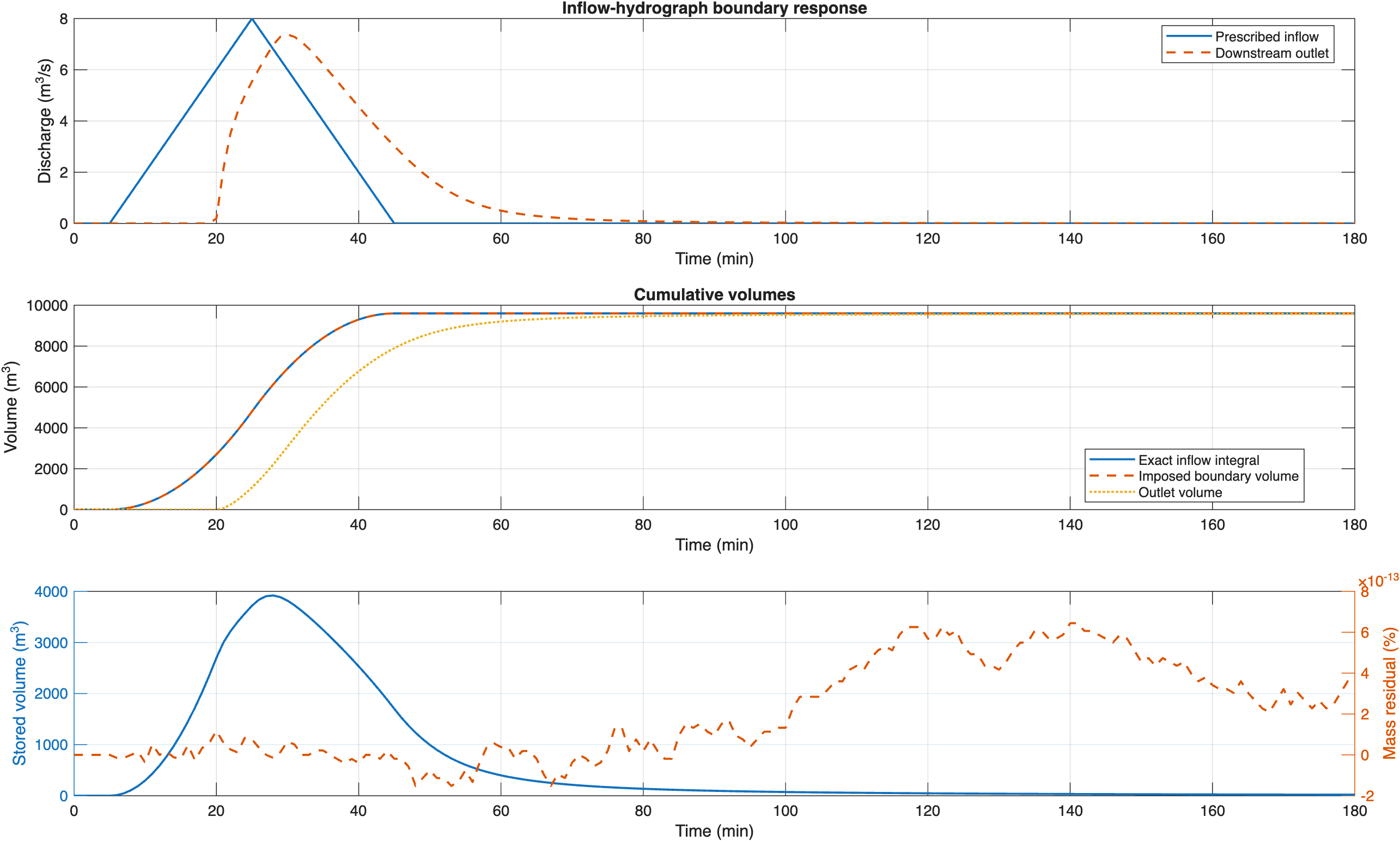

Case P1-BC-INFLOW-001 imposes a known triangular hydrograph on the upstream boundary of a rectangular full-momentum domain. The truth source is the exact integral of the prescribed inflow hydrograph. The downstream hydrograph is diagnostic because no analytical Saint-Venant solution is expected for the finite rough domain.

Case	Imposed volume error (%)	Mass residual (%)	Outlet peak (m³/s)	Peak lag (min)	Peak magnitude error (%)
P1-BC-INFLOW-001	3.41 × 10^-13	6.44 × 10^-13	7.3771	5.0	7.7862

The case passed the imposed-volume and water-balance criteria. By the end of the run, the prescribed inflow volume was accounted for by outlet discharge plus remaining stored water.

Stage hydrograph boundary condition

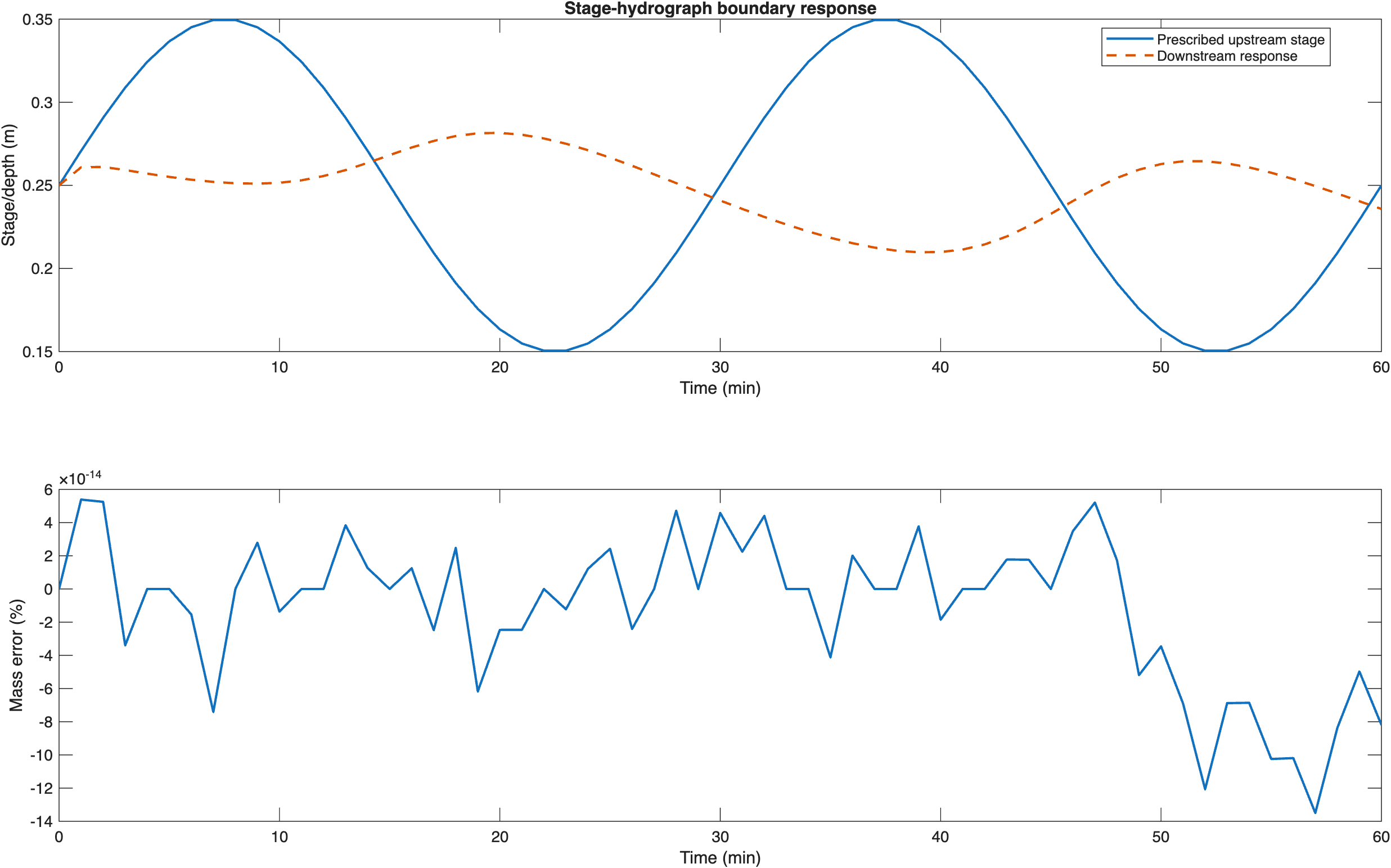

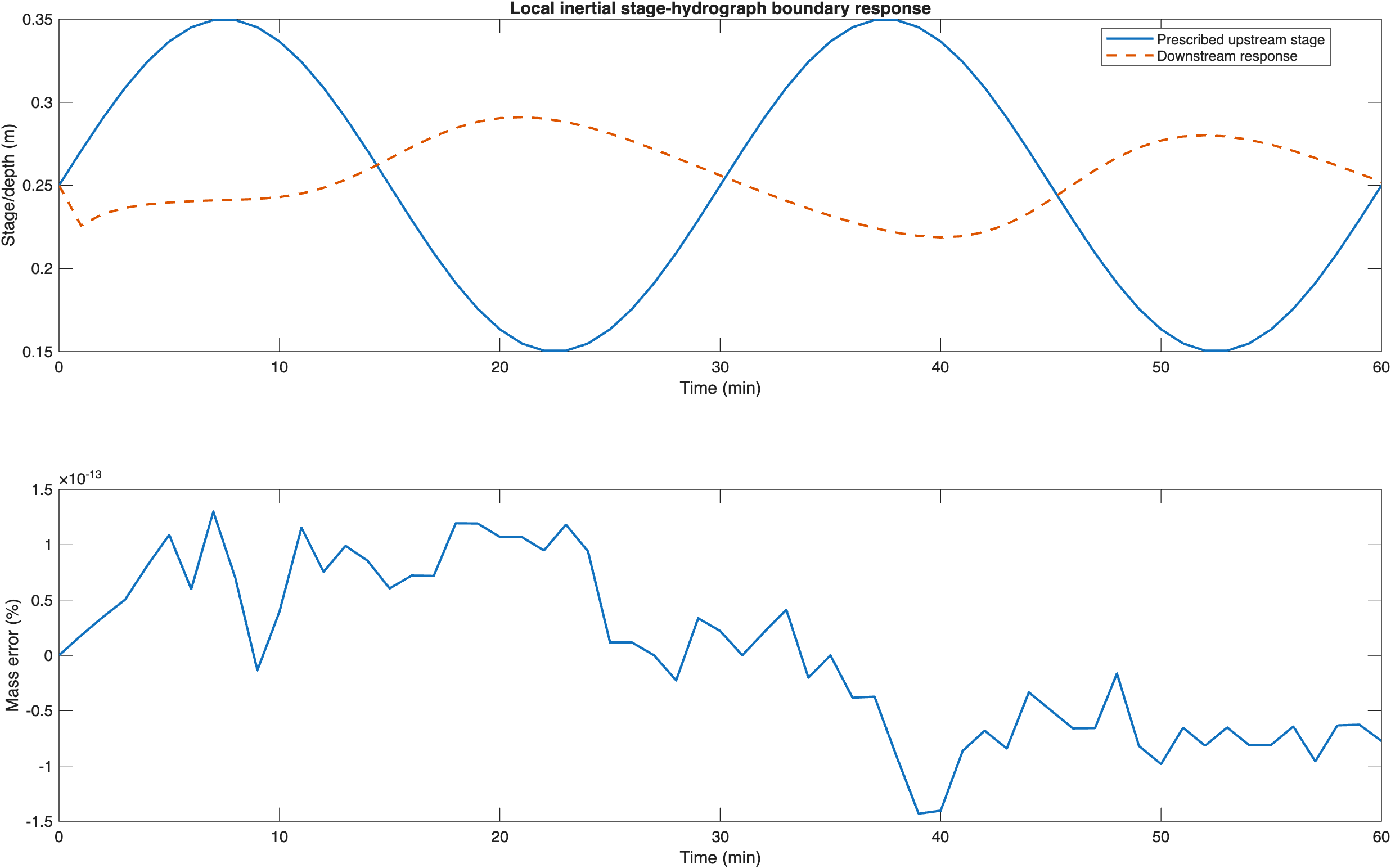

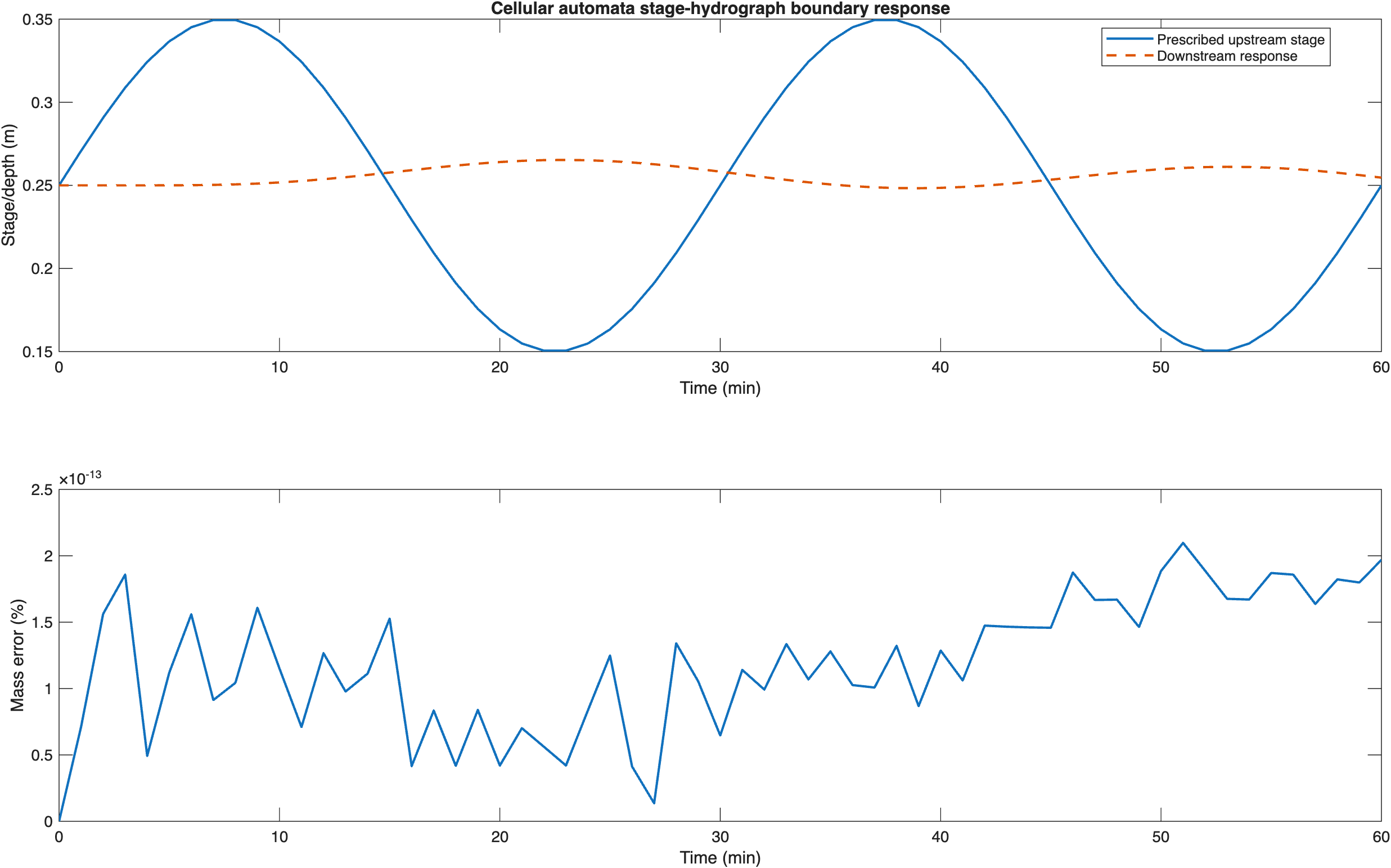

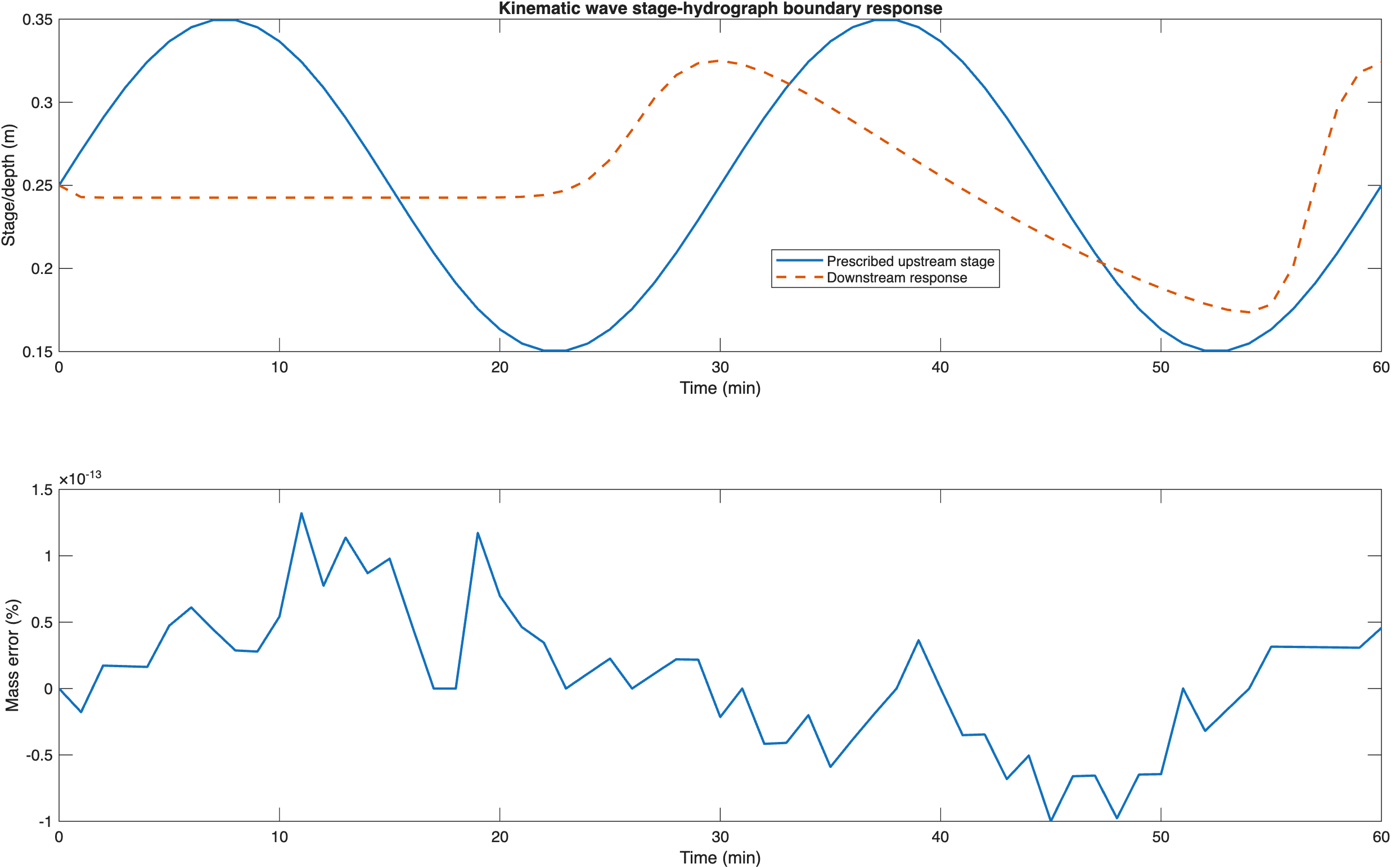

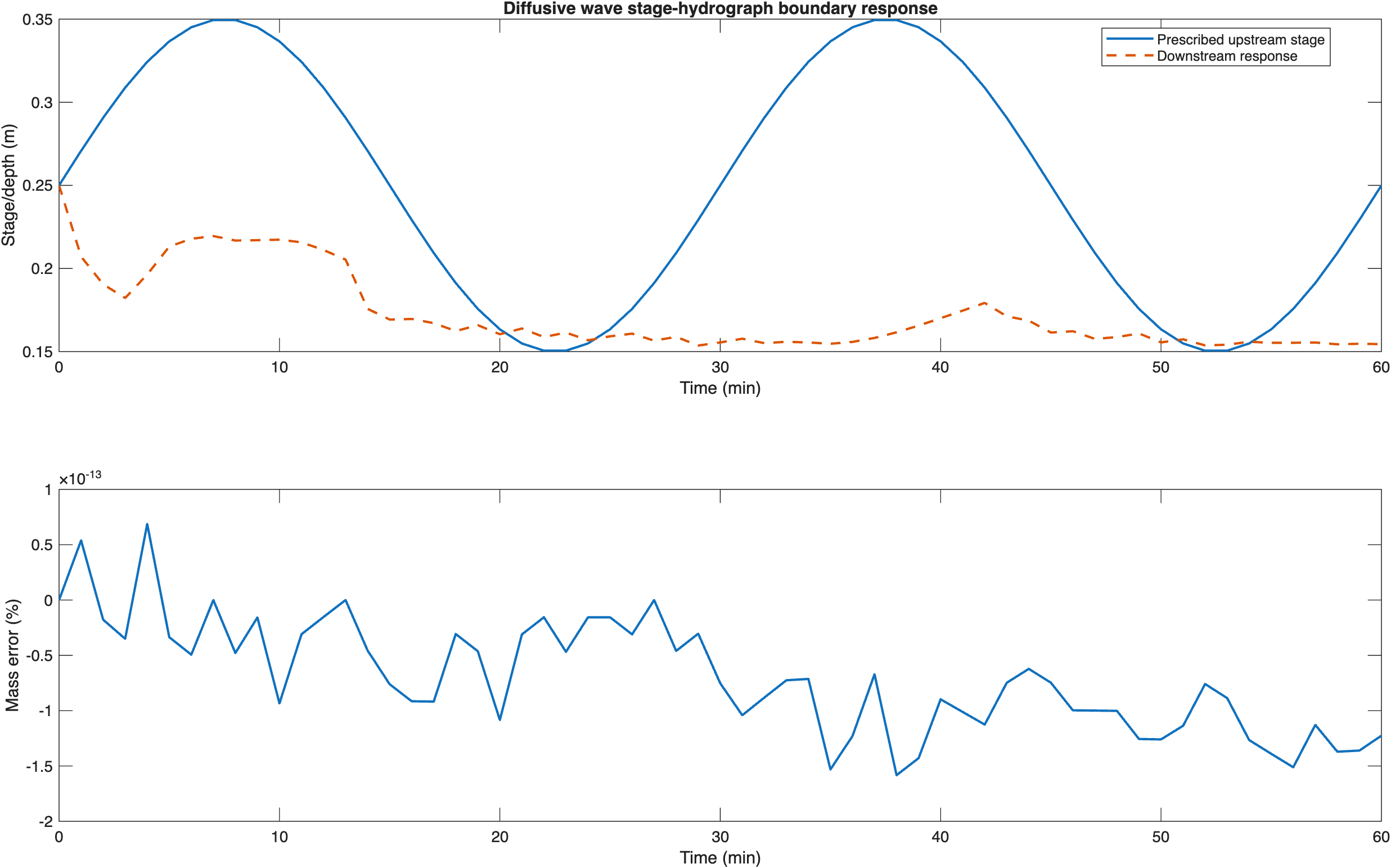

The stage-hydrograph cases prescribe a sinusoidal upstream boundary depth in a rectangular domain. At each step, the upstream stage cells are reset to the prescribed value, the selected routing solver propagates the perturbation, and the water ledger tracks boundary-added volume, outlet volume, and remaining storage.

The prescribed-stage enforcement error was zero to numerical precision for full momentum, local inertial, cellular automata, kinematic, and diffusive routing. Downstream response amplitudes differed by method, which is expected because the routing equations are not the same, but all water-balance errors remained far below 0.1 %.

Spatial rainfall raster ingestion

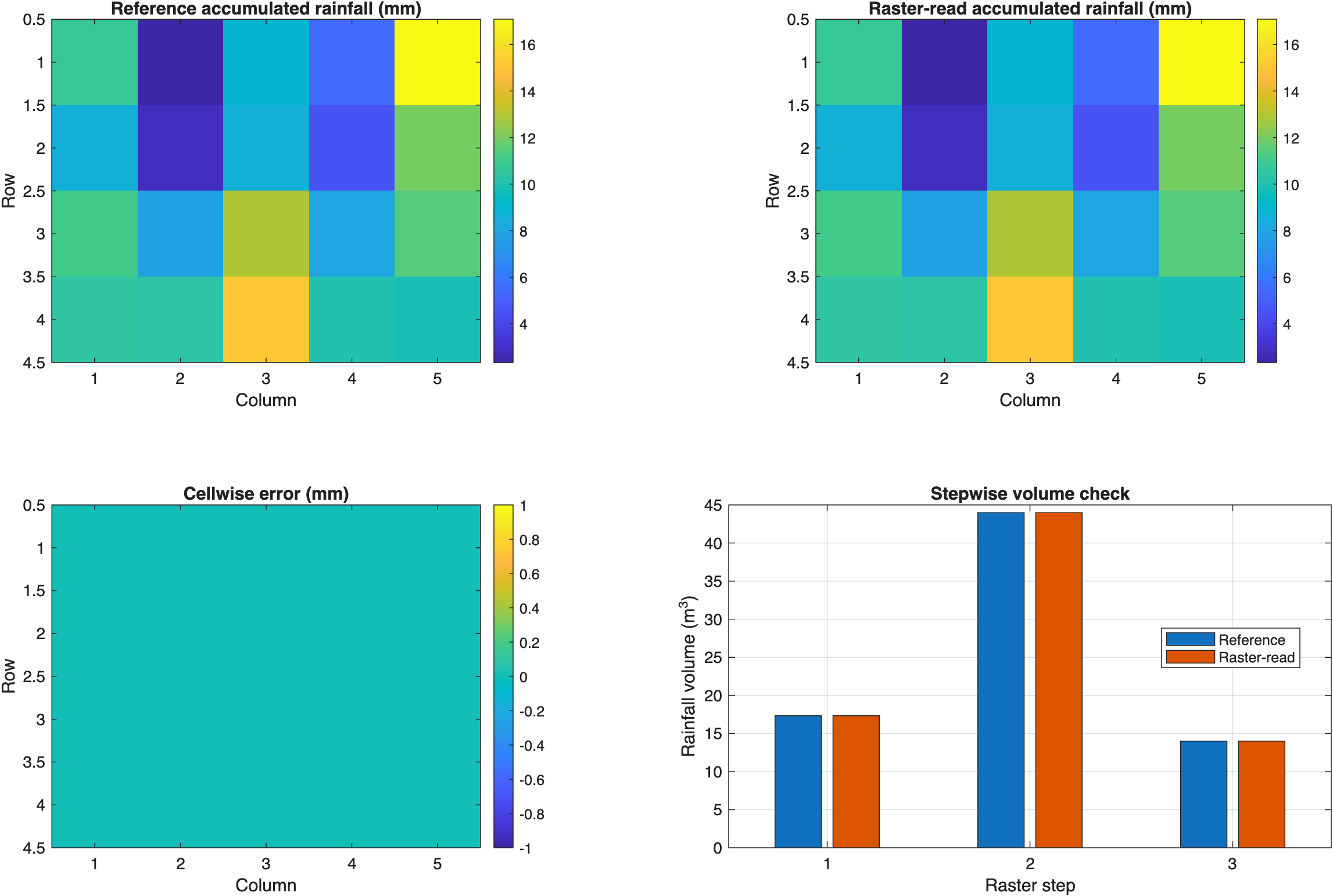

Case P1-RAIN-MAP-001 validates raster ingestion, temporal accumulation, unit conversion, and cellwise volume accounting before rainfall maps are coupled to routing, infiltration, or ET.

Case	Cellwise RMSE (m)	Max cell error (m)	Total volume (m³)	Volume error (%)	Max step error (%)
P1-RAIN-MAP-001	0	0	75.3333	0	0

The case passed exactly. The raster-read accumulated depths matched the prescribed cellwise reference, and each step volume matched the analytical integral.

Water quality

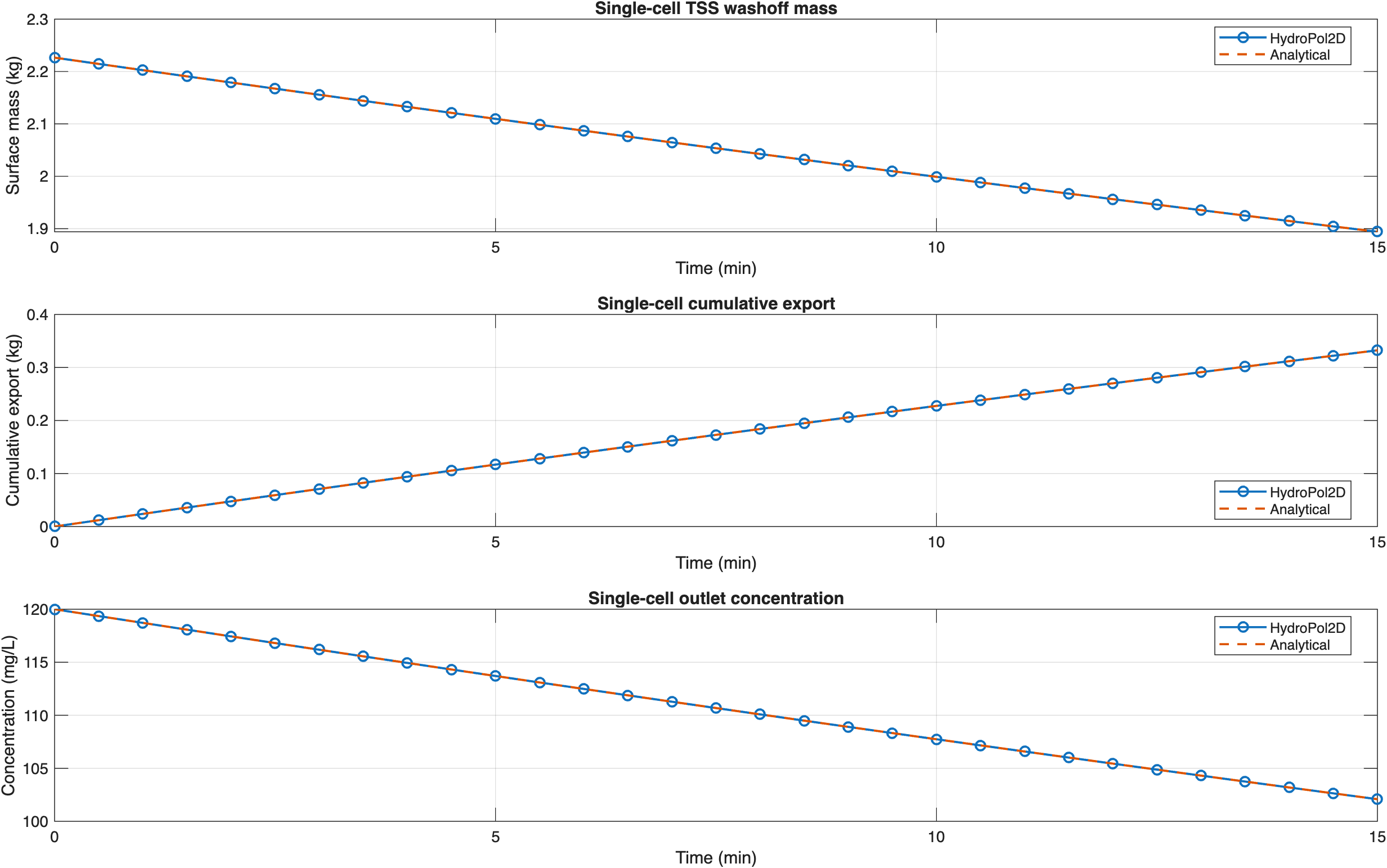

The water-quality case validates HydroPol2D's current mass-based buildup and washoff pathway before any field pollutograph calibration is attempted. The parameter scale follows SWMM-style total suspended solids buildup and washoff, but the truth source is analytical mass balance rather than a SWMM numerical run.

Three deterministic checks were used:

• dry-weather buildup initialization;
• single-cell exponential washoff;

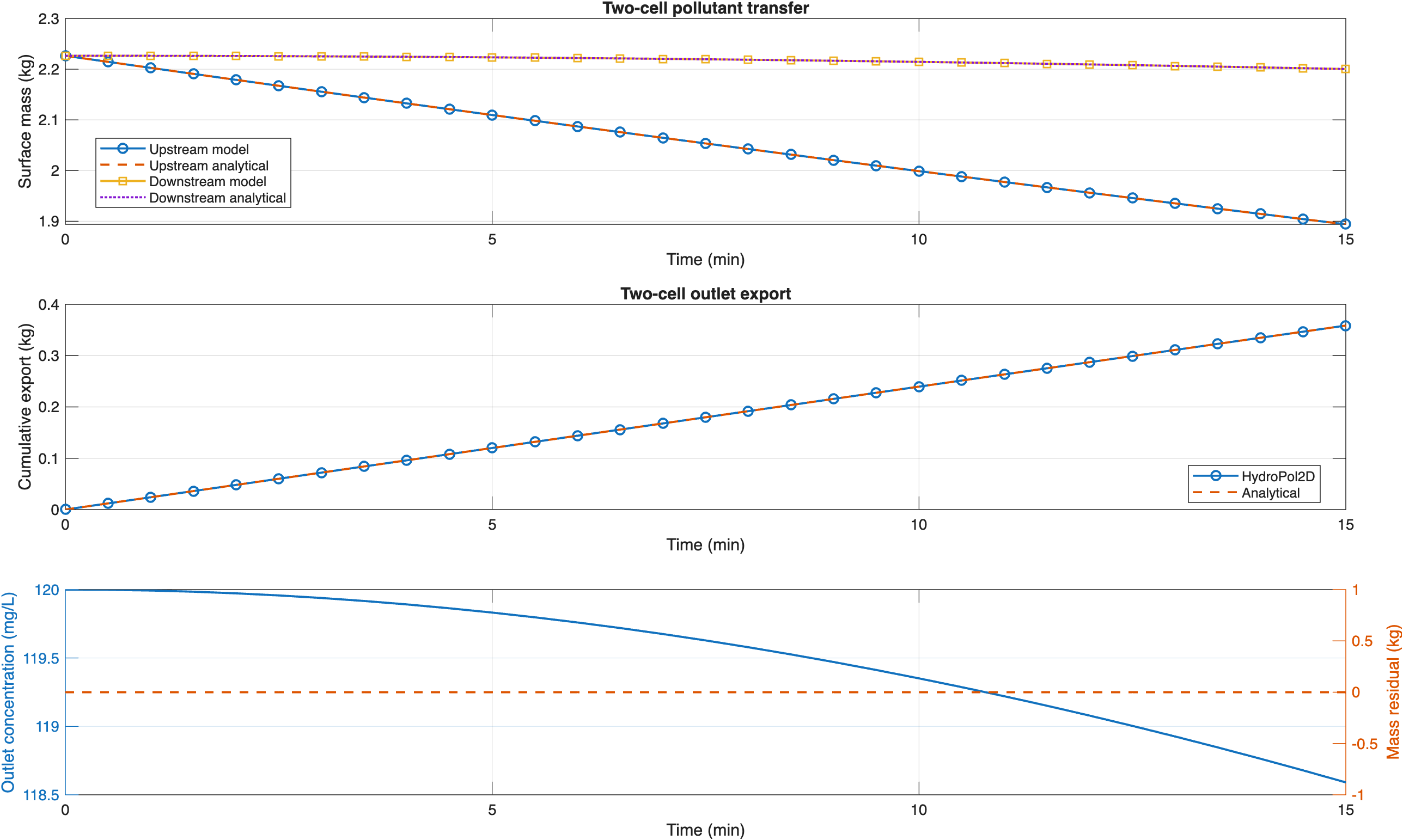

• conservative two-cell transfer and export.

Case	Mass RMSE (kg)	Export error (%)	Mass residual (kg)	Negative mass count
Dry-weather buildup	0	0	0	0
Single-cell washoff	4.998 × 10^-7	2.483 × 10^-4	0	0
Two-cell transfer	6.272 × 10^-8	3.722 × 10^-5	0	0

Phase 1 also exposed an implementation artifact: the original washoff routine rounded remaining pollutant mass to six decimal places at each substep, which created artificial mass error in analytical tests. That quantization was removed, and the current-code metrics shown above are for the corrected implementation.

Human risk and instability

The human-risk case validates the implemented algebra and classification logic, not field-scale public-safety prediction. Two active HydroPol2D pathways were tested:

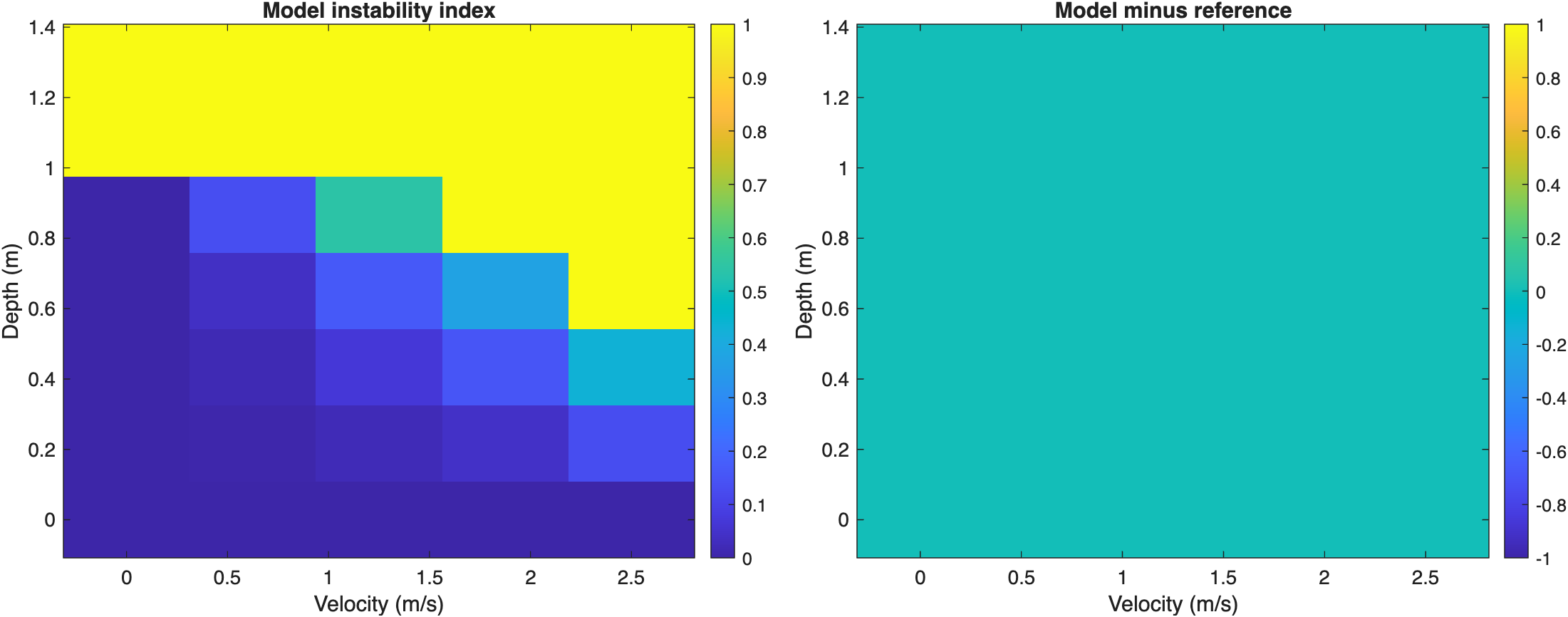

• the simple instability index used when flag_human_instability = 1;

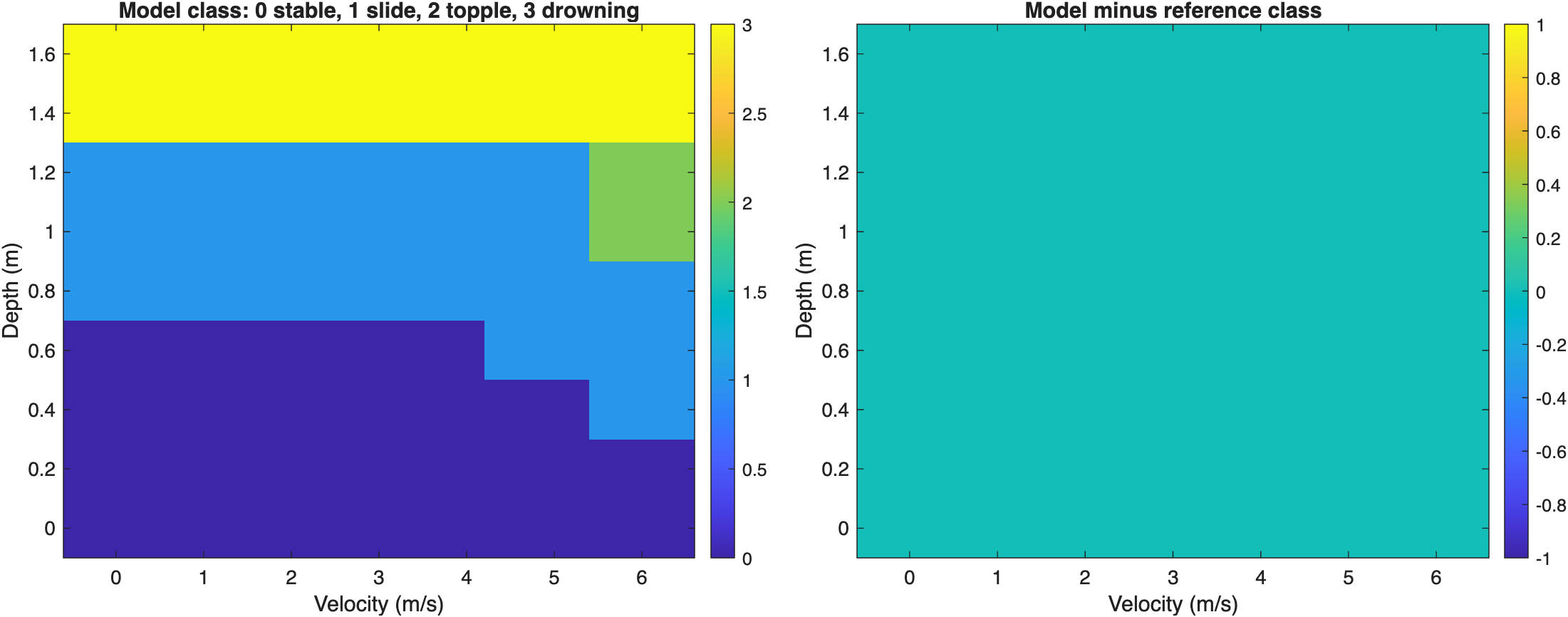

• the detailed force-balance classifier used when flag_human_instability = 3.

Case	RMSE	Max error	Accuracy (%)	Boundary errors	NaN count
Simple instability index	0	0	100	0	0
Slide/topple/drowning classifier	0	0	100	0	0

The detailed classifier grid exercised all implemented output classes and matched the independent reference exactly.

What these cases support

These ancillary cases support the current implementations of reservoir depletion, inflow and stage boundary handling, rainfall-raster ingestion, mass-based water-quality bookkeeping, and human-risk classification under controlled Phase 1 conditions.

They do not replace field calibration, site-specific forcing verification, or observational performance testing.
